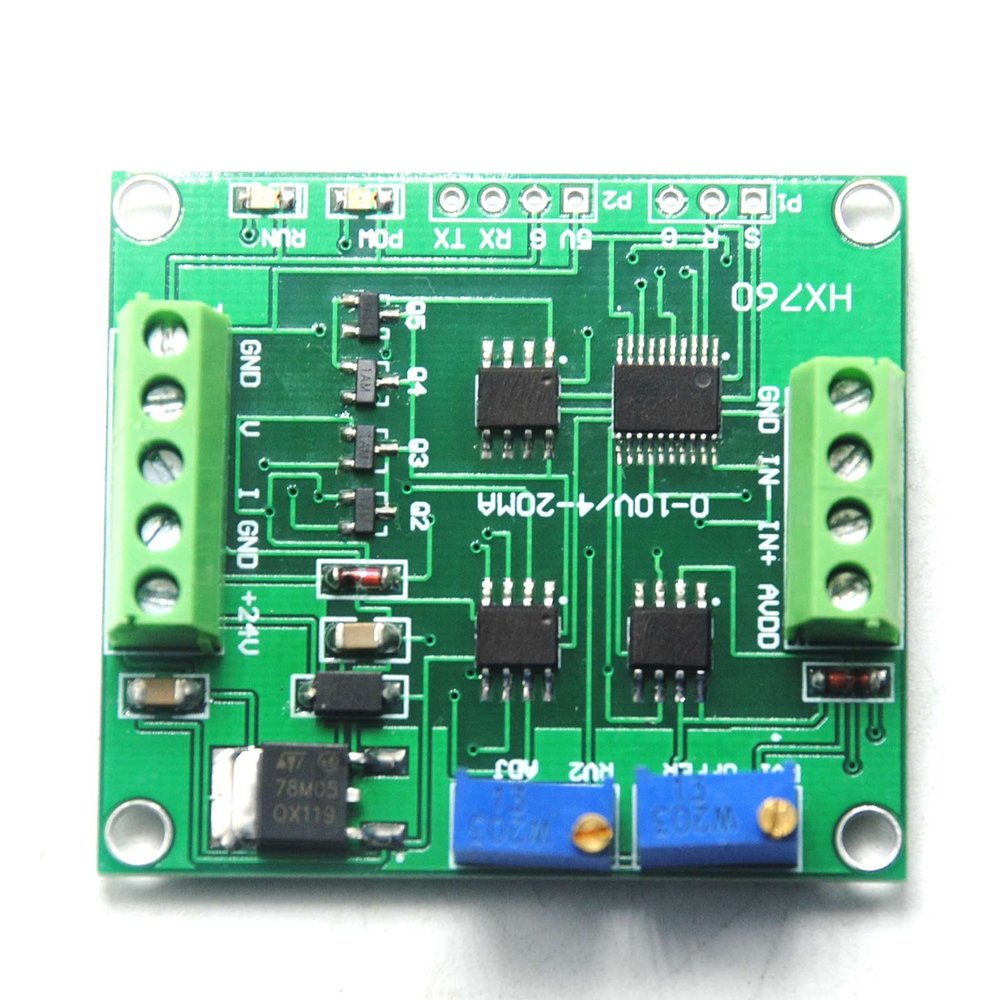

Jolooyo Weight Sensor Load Cell Amplifier 4-20ma 0-10v Load Cell 0-10v Weight Transmitter Linear Module

Description

• differential input voltage: 20mV mV max 20mV
• data accuracy: 24 bit 24 byte A/D ic
• fresh frequency: 80 Hz
• working voltage: 9~24 VDC
• Working temp.:-40~65

Description:

HX760 is an electronic scale module, and its working principle is to convert the measured change into a change in resistance value, and then convert it into an electrical signal output through a conversion circuit.>
>
The module has the advantages of simple structure, convenient use, stable performance, reliability, high sensitivity and fast measurement speed.>
>
application:>
It is widely used in many fields such as aviation, machinery, electric power, chemical engineering, construction, medicine, etc., and is commonly used to measure force, pressure, displacement, strain, torque, acceleration, etc.

parameter:
1,differential input voltage: 20mV mV
max 20mV
2, data accuracy: 24 bit 24 byte A/D ic
3, fresh frequency: 80 Hz
4, working voltage: 9~24 VDC
5,working current: <10mA
6,working temp.:-40~65
7,storage temp.-40~65
8,size: 50*45*10mm
P3 Wiring:
+ 24V: power +
GND: power -
V: output 0~10v
I: output 4~20mA
GND: power -
RV1 (OFFER)
RV2 (ADJ)
CH1
1, VDD: electronic power +
2, I+: input
3, I- :input
4, GND: -pole

Note:
When using, pay attention to the polarity of the power supply is properly connected before power.
Package Content:
1pc 4-20ma 0-10v Weight Sensor Transmitter Module Development Board
