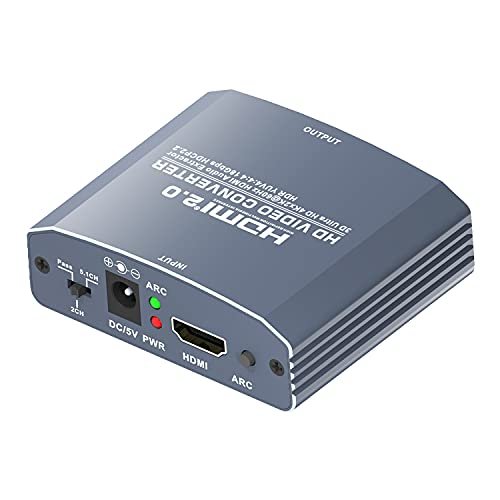

3D Ultra Hd 4kx2k@60hz Hdmi Audio Extractor, Separate Hdmi Signal to Hdmi Signal & 3.5 Stereo/spdif/coaxial Audio, Supports 1080i/p & Video Color 36bit Deep Color

Description

• 1*FunctionThe Spliter (3D Ultra HD 4Kx2K@60Hz HDMI Audio Extractor) allows the HD device Source to connect those single HD Display and extra one 3.5 Stereo & SPDIF/Coaxial audio with output port. It can solute reducing problem from noise, space and security concerns. So you can enjoy HIFI stereo or headphone at synchronization
• 2*Plug and Playthe HDMI Separator can realize plug and play after installed drivers in minutes, it is easy to set up. It supports HDMI2.0 and HDCP2.2 & downward compatibility, Optimize HDMI signal to buffer, amplify and extend the signal
• 3*Wide CompatibilityThe HDMI adapter supports HDMI resolution (480i/p,576i/p,720p, 1080i/p, 4Kx2K@30Hz), color format: 24bit/36bit/48bit deep color and Max bandwidth: 600MHz. Share music and movies on the HD TV. Increasing signal processing provides a high-resolution, flicker-free and distortion-free image quality
• 4*Widely UseThe HDMI Separator is widely applied to HDTV display in data center control, information distribution, conference room presentation, school and corporate training workplaces and enjoy HD image result and HIFI stereo
• 5*WarrantyWe provide 12 months warranty and Service after sales. The HDMI Converter is durable aluminum build makes for more stable safety. PACKAGE INCLUDED:- 1xExtracter 1xManual 1x-3.5V DC Power Supply Adapter; Dimension (L x W x H) 73X60.5X22.5 (mm), Weight: 90g

Brand: Sheng Jie
Model: T-621E
Hdmi Audio Extractor Hdmi Audio Extractor 4k@60hz 18gbps Hdcp2.2

1.0 INTRODUCTION

The converter allows the HD Source connected to single HD Display and extra one 3.5 Stereo and SPDIF/Coaxial audio with output port. It can solute problem from noise, space and security concerns, and was applied to difference various workplaces.

2.0 FEATURES

1.Plug and play, Installs in minutes; 2.Support the HDCP2.2 protocol, Support for HDMI2.0; 3.Support HDR 18Gbps YUV4:4:4; 4.Converts One HDMI input to another HDMI+ Audio (SPDIF+3.5(Stereo)+Coaxial) output;
5.Input/Output Resolution: up to 4Kx2K(60Hz); 6. Achieve the synchronization between one HDMI and another audio signal separation; 7.Support select 2.0CH/5.1CH/by pass audio mode options;

3.0 SPECIFICATIONS:

HDMI resolution: 480i/p,576i/p,720p,1080i/p,4Kx2K@60Hz;
Support video color format: 24bit/36bit/48bit deep color; Audio output: SPDIF+Coaxial+3.5 Stereo); Max bandwidth: 600MHz;
Max baud rate: 18Gbps; Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL); Input/Output DDC signal: 5Volts p-p (TTL); Input cable distance: 10m 28AWG; Output cable distance:-10m 28AWG HDMI standard cable;
Max working current: 500mA; Power adapter : Input: AC(50/60HZ) 100V-240V; Output: DC5V/1A; Operating Temperature range: (-15 to +55); Operating Humidity range: 5 to 90%RH (No no Condensation).
